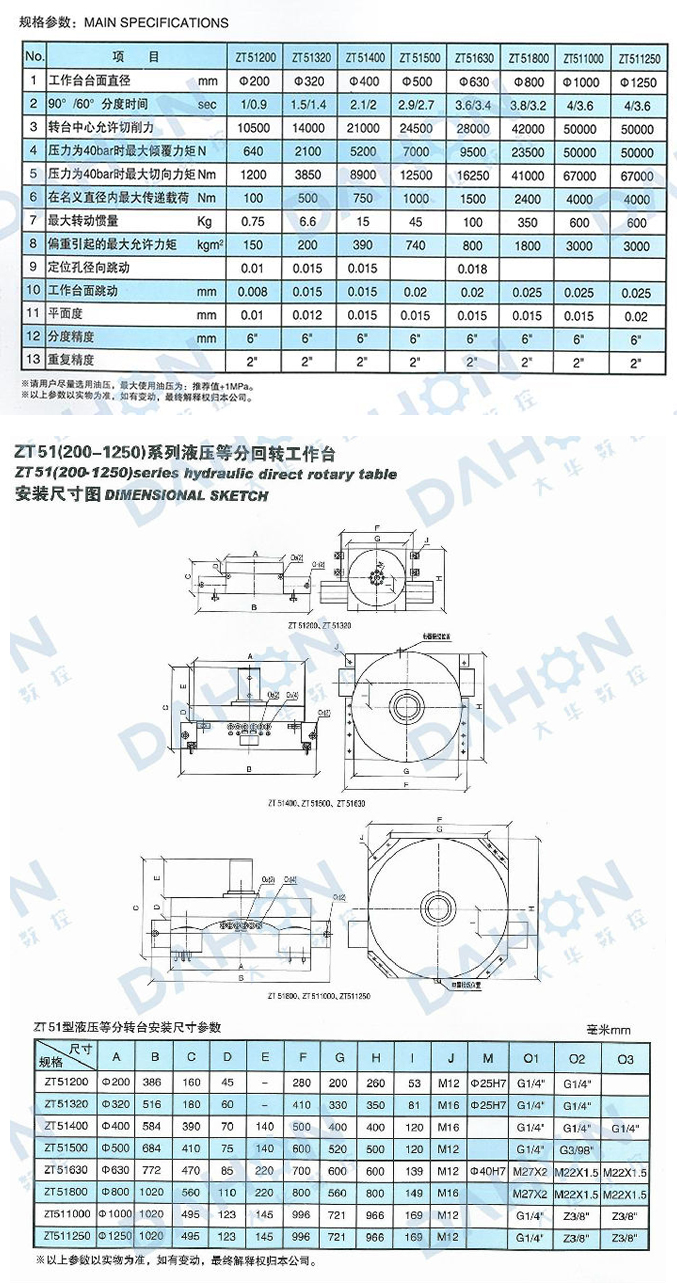

ZT 51系列等分轉臺是為專用機床而設計生產的 一種液壓機械式分度裝置，它通過液壓油缸實現轉臺的松開、剎緊以及轉位，使轉臺在主機控制系統的控制下，完成固定角度回轉，進而完成主機對零部件的加工。該轉臺具有動作靈活、結構緊奏、分度精度高、剎緊力大、控制簡單等特點。
現有產品規格從臺面直徑200-2000mm不等
ZT 51series hydraulic direct rotary table is a kind of product which is co-produced by ourgroup and a Germancompany.The table will be at lifting position when table is-at rotation.
The optional diameter of table range is from 200mm to 2000mm.
